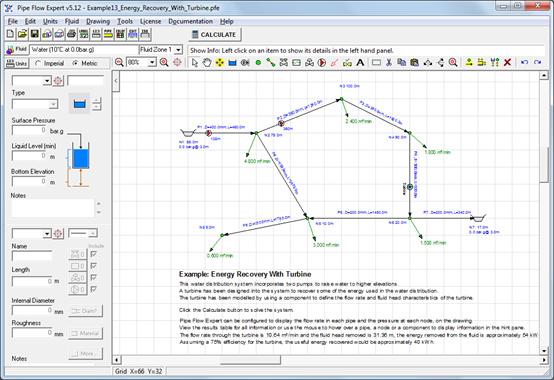

Example 13 - Pipe System Energy Recovery via a Turbine

    Pipe System with Energy Recovery via a Turbine

This water distribution system incorporates two pumps to raise water to higher elevations. A turbine has been designed into the system to recover some of the energy used in the water distribution.

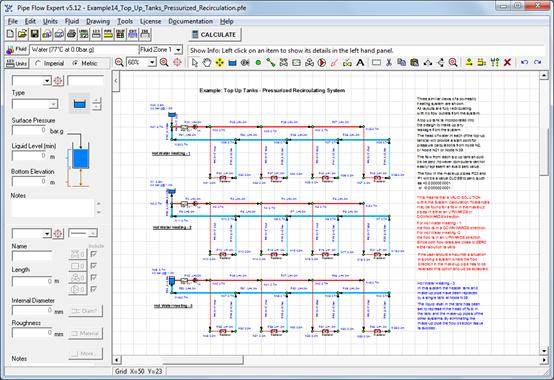

Example 14 - Pressurized Recirculation Piping with Top-Up Tanks


Top up Tanks with Pressurized Recirculation System

Three similar views of a domestic heating system are shown. All layouts are fully recirculating with no flow outlets from the system. A top-up tank is incorporated into the designs to make up any leakage from the system.

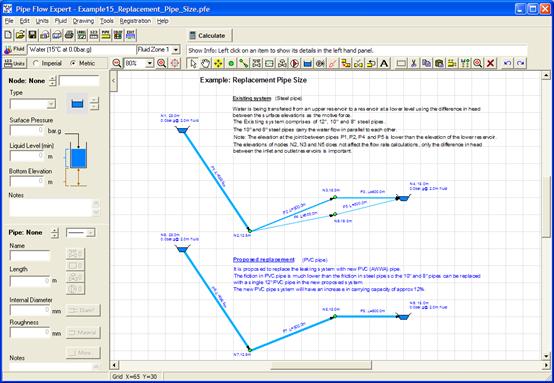

Example 15 - Pipe Sizing Design for Replacement Piping


Pipe Sizing for new Piping Design

Water is being transferred from an upper reservoir to a reservoir at a lower level using the difference in head between the surface elevations as the motive force. It is proposed to replace the leaking system with new PVC (AWWA) pipe.

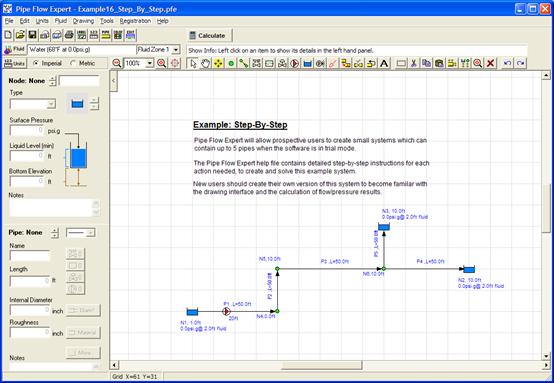

Example 16 - Step-by-Step Walkthrough design of a Pipe System


Design a Piping Step with Step-by-Step Walkthrough

Pipe Flow Expert will allow prospective users to create small systems which can contain up to 5 pipes when the software is in trial mode. The Pipe Flow Expert help file contains detailed step-by-step instructions for each action needed, to create and solve this example system.

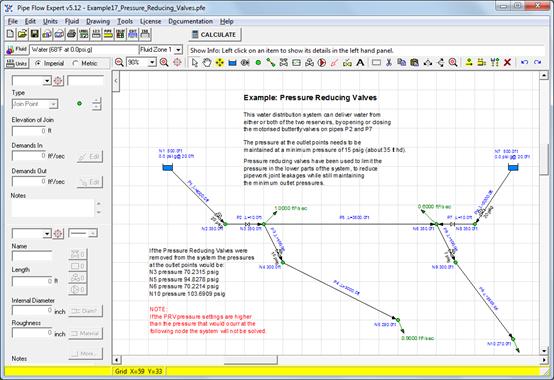

Example 17 - Pressure Reducing Valves


Modeling a Pressure Reducing Valve

Modeling a Pressure Reducing Valve in the pipe system to limit the pressure in the lower parts of the system, which reduce pipework joint leakages while still maintaining the minimum outlet pressures.

Example 18 - Back Pressure Valves


Modeling Back Pressure Valves in a Pipe System

A Back Pressure Valve (BPV) has been fitted in pipe P3 to maintain the minimum pressure at the outlet from node N2 in the upper part of the piping system.
