Isometric Pipe Systems Examples 1 - 6
Isometric Pipe Systems Examples 7 - 9
Isometric Example 01 - Chilled Water Piping System |
|||
|
Chilled Water Piping System
Chilled Water Piping System that provides cooling to three external buildings using three Air Cooled Liquid Chillers (ACLC). |
||
Isometric Example 02 - HVAC Piping Design over Three Floors |
|||
|
HVAC Piping System over Three Floors The heating ventilating and air-conditioning system to three floors is provided via ceiling mounted fan coil units. The cooling circuit contains a separate pump to supply each floor. |
||

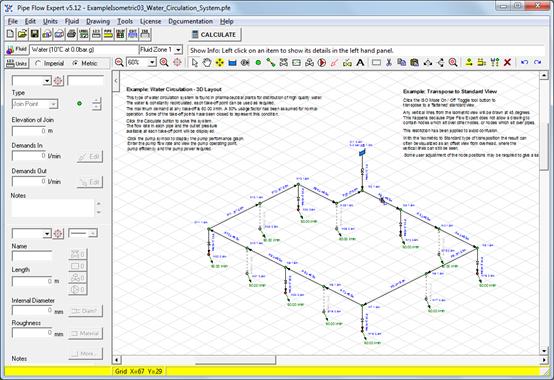

Isometric Example 03 - Water Circulation Piping System |
|||
|
Water Circulation System This system demonstrates a recirculation design where some of the fluid is returned to the start point to be circulated again and some of the fluid is removed. |
||

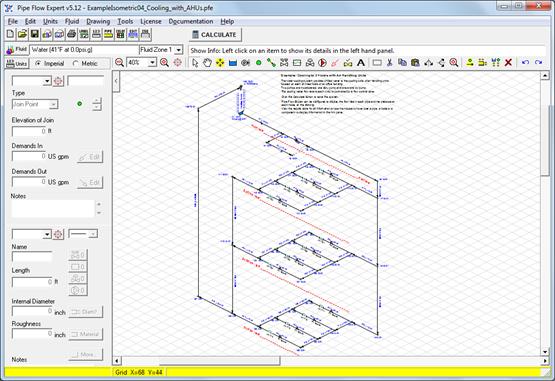

Isometric Example 04 - Building Cooling System |
|||
|
Water Cooling System for Commercial Building This system provides cooling water to the cooling coils of 12 Air Handling Units located on 3 floors of a building, with a cooling tower located on the roof of the building. |
||

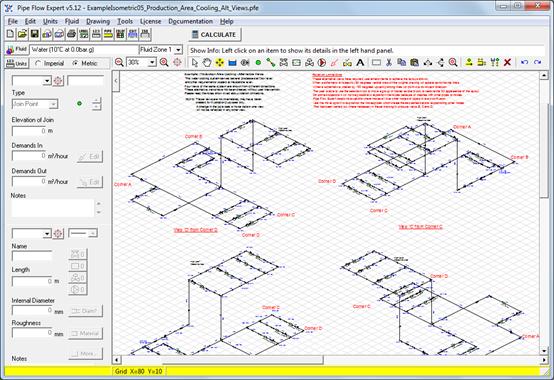

Isometric Example 05 - Water Cooling of Production Area |
|||
|
Water Cooling of Machine Production Area This water cooling system serves several machines in a production area located at a ground level. Some ancillary services are located at a mezzanine level. |
||

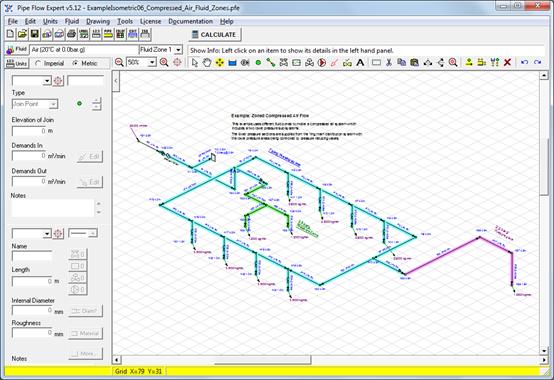

Example 06 - Modeling Compressed Air over Multiple Fluid Zones |
|||
|
Compressed Air System using Multiple Fluid Zones This compressed air system has 3 different pressure zones. Pressure reducing valves are used to maintain lower pressure zones, which are fed from the higher pressure zone. |
||
