Pipe Flow Expert Software - Drawing Interface Screenshots
Additional pages of screenshots:
Screenshots Overview
Screenshots of Pipes & Fittings Database
Screenshots of Pumps, Fluids & Components Data
Screenshots of Drawing Interface
Screenshots of Configuration Options
Screenshots of Results Sheets
Screenshots of PDF Reports
Screenshots of Drawing Area Interface
Hover over a screenshot to show an enlarged image with more detail.
|
Drawing Tools Menu |
|
|

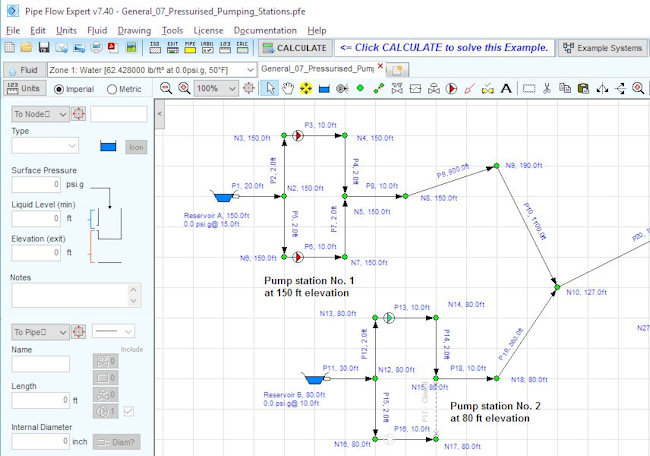

The Drawing Tools Menu is located above the drawing area. Items can be selected and then added to the piping drawing with just a few mouse clicks.
|
|
Pipe Panel |
|
|

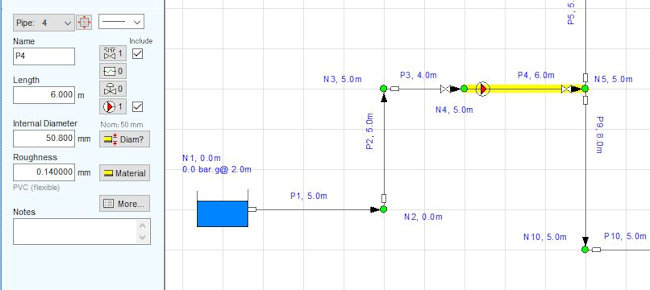

The Pipe Panel shows information about the currently selected pipe. Pipe data can be updated manually or it can be selected using the Pipe Materials and Pipe Diameter databases.
|
|
Node Panel for a Tank |
|
|

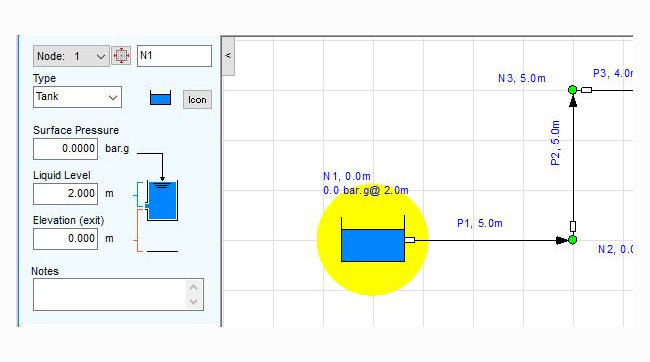

The Node Panel shows information about the currently selected node. The tank elevation, surface pressure & liquid level can be specified, and the tank symbol can be chosen.
|
|
Node Panel for a Joint |
|
|

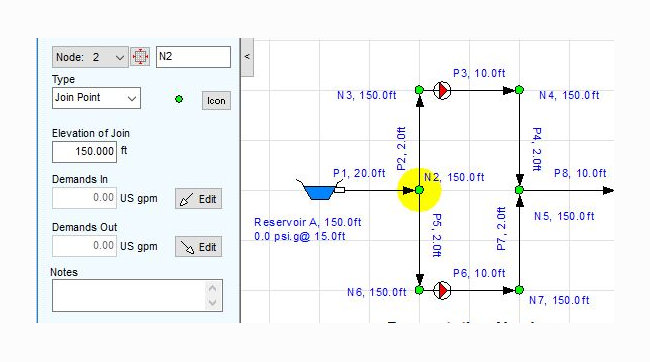

The Node Panel shows information about the currently selected join node. The elevation can be specified together with any 'demand flow' leaving or entering at that point.
|
|
File Menu & Other Menus |
|
|

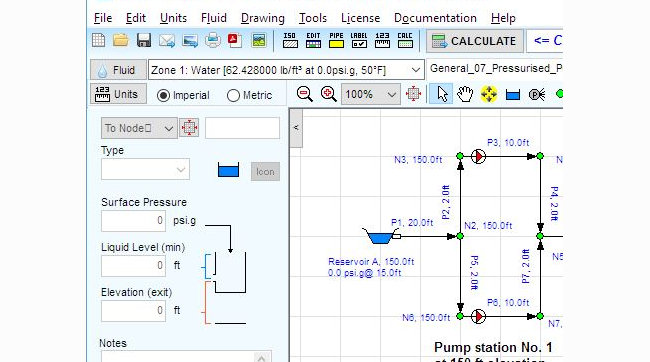

The main menu has drop downs for File, Edit, Units, Fluid, Drawing, Tools, License, Documentation & Help, to allow easy selection and configuration of items on your pipe system drawing.
|
