1. Click the Edit Network Data tool button MenuButton_Edit to display the Edit Grid.


  1. Choose a tab to display data for Pipes, Tanks, End Pressures, Nodes, FCVs, PRVs, BPVs, Fixed Losses, Cv Values, Kv Values, Sprinklers K (Imperial), Sprinklers K (Metric), Orifices, Pumps (Fixed Flow), Pumps (Fixed Head) and Pumps (Curve).


  1. Select the cell that contains the data you want to edit.


  1. The Edit Grid can be over-typed and updated directly (changes are applied immediately).


Note: The changes will be applied immediately and the drawing will be updated. An Undo option is not available hence amendments cannot be cancelled; the original data must be re-entered.

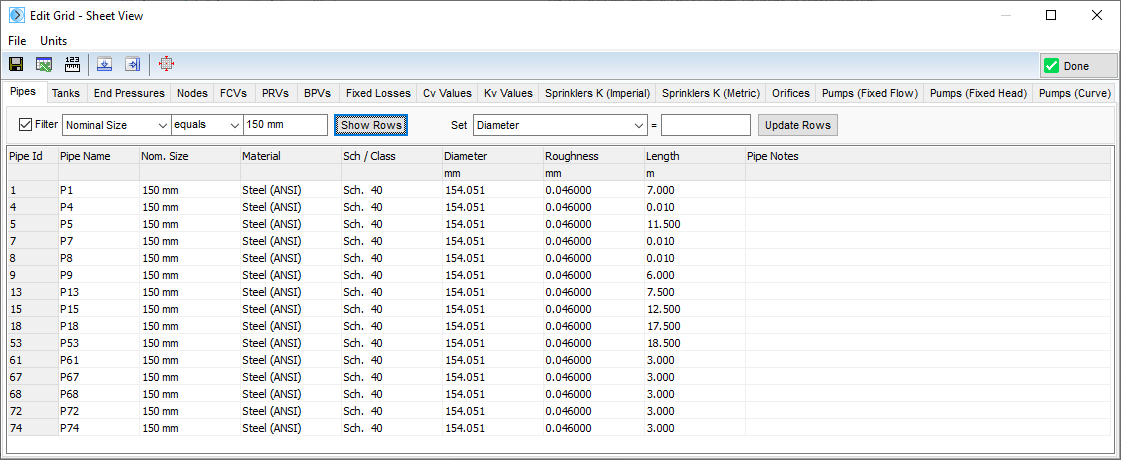

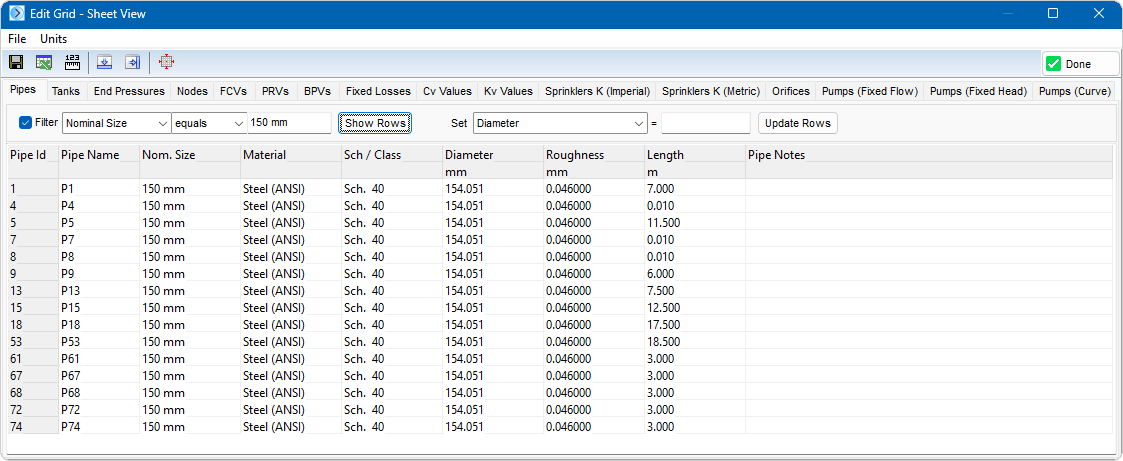

Figure 103  The Edit Grid (in filter mode)

Item Selection:

Selecting a cell in the edit grid will highlight the row and highlight the item in the Drawing Pane.


To zoom to the highlighted item in the Drawing Pane:

When the Edit Grid: Zoom To configuration option is set to Single Click, selecting a cell or row in the edit grid will automatically zoom to the highlighted item.


When the Edit Grid: Zoom To configuration option is set to Double Click:

  1. Select a cell or row in the edit grid and click the Zoom to Highlighted item button, Zoom_to_button.dib, on the tool bar, or
  2. Double click in a cell or the row header (the ID column) in the edit grid.


To de-select an item in the edit grid:

  1. Right click in the row header (the ID column), or
  2. Change to a different tab.



Filtering Items:


By default, the Edit Grid will display all the pipes and nodes in the current system.  The Edit Grid can show a subset of the pipes and nodes in the system using one of the following two methods:

  1. Using the Filter to only show rows that match certain specified criteria.  For example, the data shown on the Pipe Tab can be filtered by: Pipe ID, Pipe Name, Nominal Size, Material/Sch., Diameter, Roughness or length.
    When a filter has been applied, the items displayed in the Edit Grid will also be selected in the Drawing Pane.

Note: When closing the Edit Grid after applying a filter, the items displayed in the Edit Grid will remain selected in the Drawing pane and the individual selection tool, IndividualSelectionToolButton, will be enabled thereby enabling the selection to be refined using the network diagram.


  1. Select the required items in the Drawing Pane (using the group, Selection%20tool, or individual, IndividualSelectionToolButton, selection tools) and then Click the Edit Network Data tool button MenuButton_Edit to display the Edit Grid.  Only the selected items will be displayed in the Edit Grid.
    Note: The filter by criteria capability is not available when the Edit Grid is opened when items are selected in the Drawing Pane.



Updating Items:


Data in the Edit Grid can be updated by selecting individual cells and editing the value directly.  Alternatively, multiple rows can be amended as a group, in a single operation, by selecting an item to be updated from the drop down list, entering a value to ‘Set’, and clicking the ‘Update Rows’ button.
