Reference:  Flow of Fluids – Technical Paper No 410, 1988, Crane Co. Page 4-5, Example 4-9.


Pipe Flow Expert File: Case_34_SAE_70_Lube_Oil_Laminar_Flow_In_Valves.pfe


Problem Description:

A piping system consisting of 5” diameter steel pipe (schedule 40) carries SAE 70 Lube Oil at 100°F.

The flow rate is 600 gpm (US).

The piping includes a 5” gate valve and a 5” angle valve.


Find the fluid velocity and the pressure loss across the system.

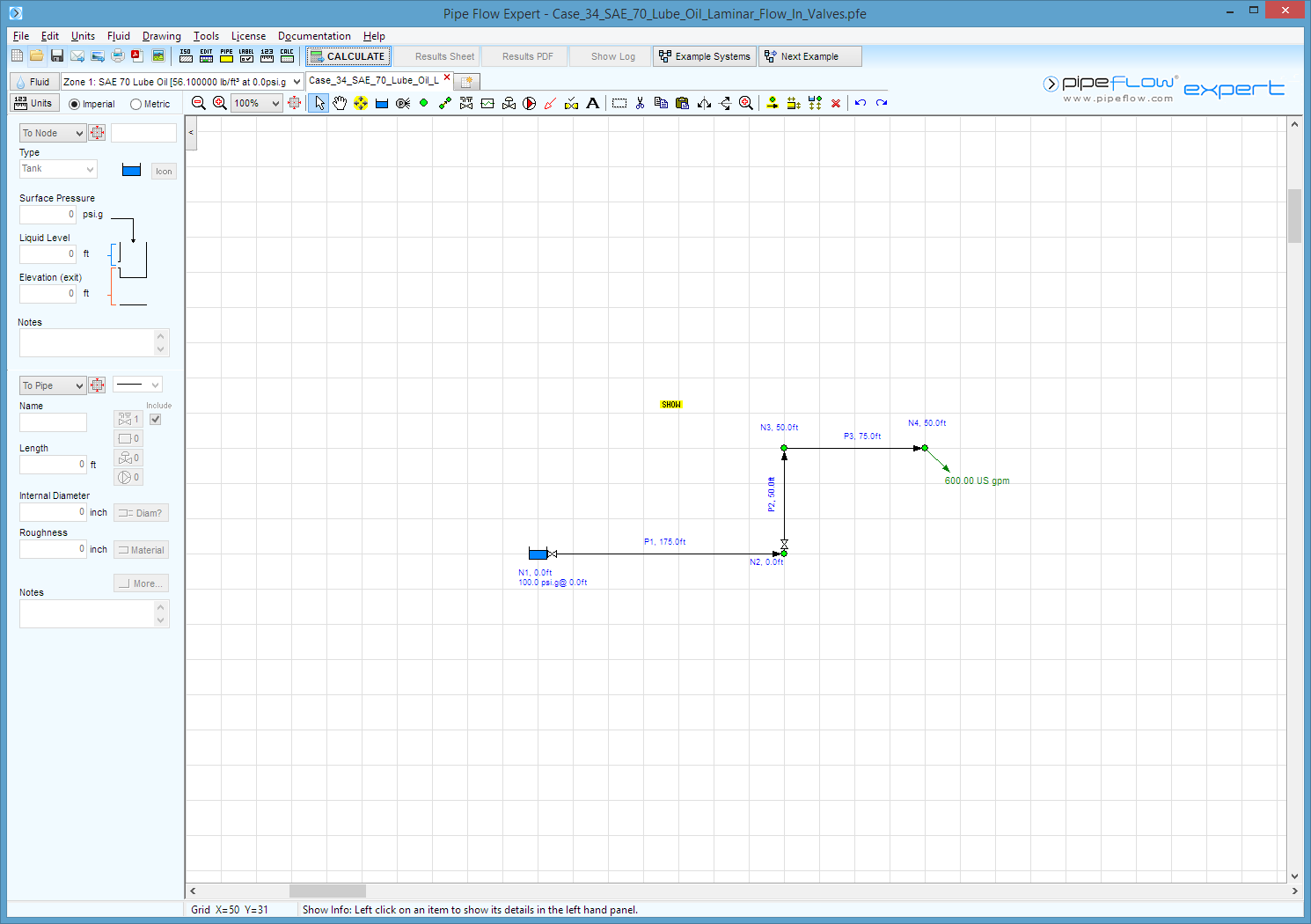

A screenshot of a computer??Description automatically generated


Fluid Data: SAE 70 Lube Oil at 100°F


Result Comparison:


Data Item

Published data

Pipe Flow Expert

Pressure Loss (psi)

56.6

56.6014 (100.000 - 43.3986)

Fluid velocity in pipe (ft/s)

9.60

9.622

Reynolds Number

718

719

Friction factor

0.089

0.08903


Commentary:

The published data and the calculated results compare well.

The system was modeled in Pipe Flow Expert with a fluid surface pressure of 100.00 psi g at the inlet to the system.

The outlet node had a resulting pressure of 43.3986 psi g.

The pressure difference is obtained by subtracting the outlet pressure from the inlet pressure.
