Pipe Flow Wizard Software for Desktop User Guide - Adding a Pipe Diameter

To add a new pipe diameter:

1. Click the Diam. button on the calculation panel to open the Pipe Diameter screen.

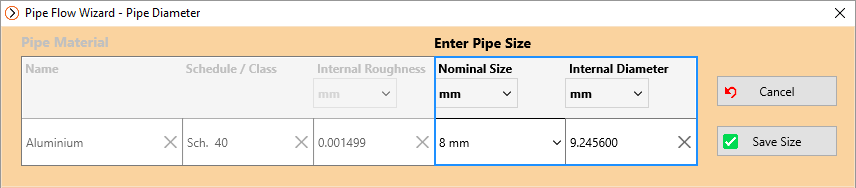

Figure 49 Add Pipe Diameter

2. Click the Add Size button.

3. Specify the Nominal Size and Internal Diameter values.

4. Click Save Size.
