Pipe Length Calculation - Gas
The maximum length of a pipe that contains a gas can be calculated as follows:
- Select the Find Length calculation.

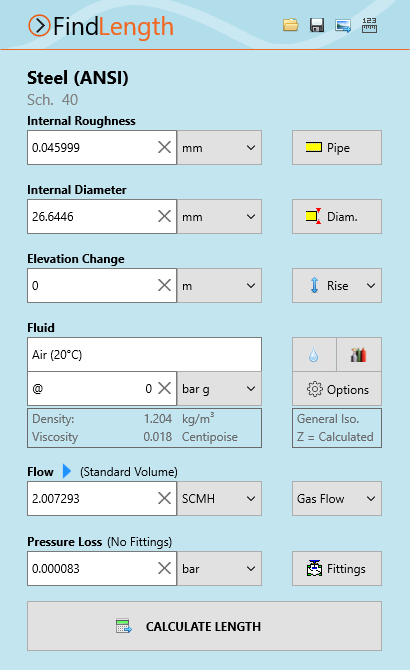

Figure 40 Pipe Length Calculation – Gas
- Select or define the Material and Internal Roughness of the pipe. For more information about working with pipe materials, see: Pipe Material & Diameters
- Select or define the Internal Diameter of the pipe. For more information about working with pipe diameters, see: Pipe Material & Diameters
- Set the Elevation Change of the pipe.
- Select the Fluid in the pipe. For more information about working with fluids, see: Fluids Database
- Enter the Flow Rate of the fluid in the pipe. For more information about setting a flow rate based on a velocity, see: Pipe Length Flow Rate Calculator / Helper
- Enter the Pressure of the fluid at the start of the pipe.
- Enter the Pressure Loss in the pipe.
- Add Fittings to the pipe if required. For more information about working with fittings, see: Fittings & Valves
- Click Calculate Length and the Results Panel will slide up.
The internal diameter will be reset to 1.049” (26.64 mm) if running the trial version of Pipe Flow Wizard.

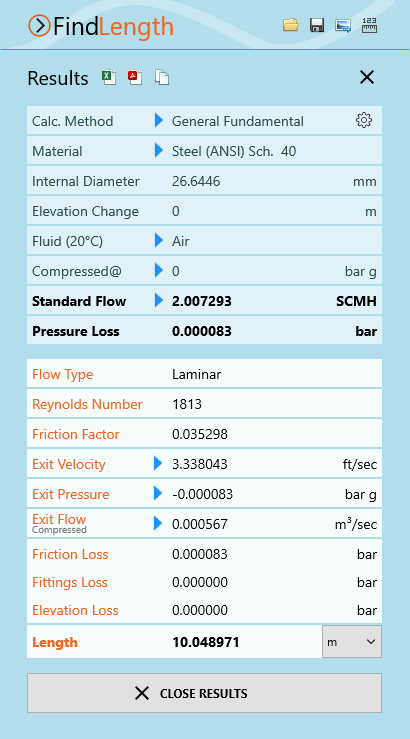

The Find Length Results Panel displays the calculation input data and the results of the Find Length calculation. For more information about the Results Panel, see: Results Panel
The Length units can be changed as required. To change the length units for all subsequent calculations, the length unit can be specified in Settings > Units. For more information about setting units, see: Units
To generate and view an Excel or PDF Report of the results, click the Excel
button or PDF
button. For more information about generating reports, see: Creating a Report of the Results
To copy the calculation data to one or more other calculations, click the Copy
button and select the required calculation(s).
To close the Results Panel, click the Close
button in the corner or the Close Results
button at the bottom.
