To select a pipe diameter:


  1. Click the Diam. button on the calculation panel to open the Pipe Diameter screen.


A screenshot of a computer??Description automatically generated

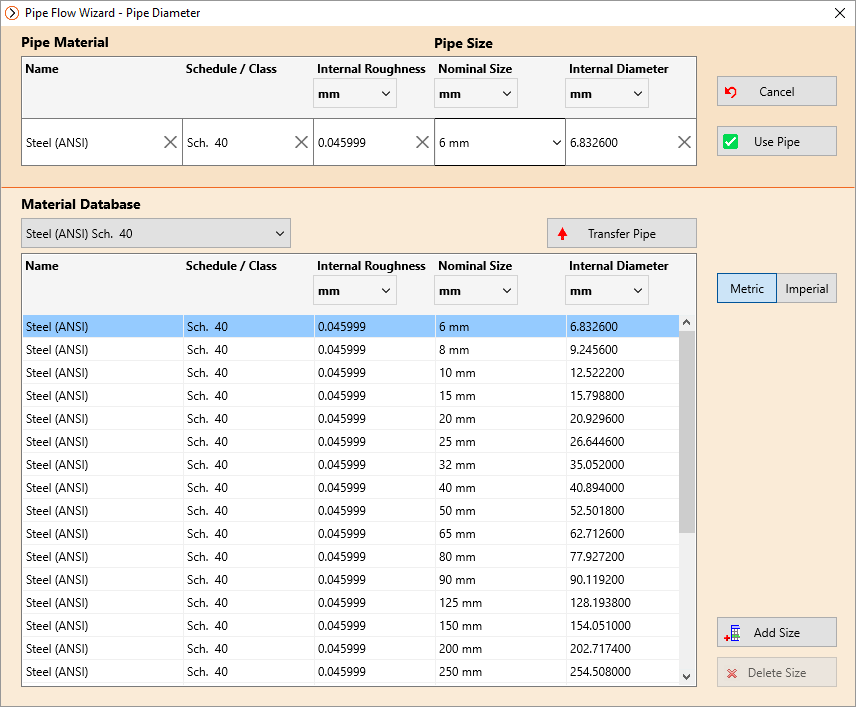

Figure 48 Pipe Diameter


  1. If required, change and select the pipe material from the Material Database list.


  1. Double click on a row in the list of pipe diameters, or select a row from the list of pipe diameters and click the Transfer Pipe button, to update the Pipe Material and size information.


  1. Click the Use Pipe button.
