Pipe Flow Expert Full version

=> allows users to model large systems with up to 1000 pipes.

Pipe Flow Expert Lite version

=> allows users to model smaller systems with up to 25pipes.

Pipe Flow Expert Lite (25 pipes) has exactly the same functionality as the Full version (1000 pipes) with the ONLY difference being the maximum number of pipes that can be modelled in any one system.

A pipe is simply a connection between two nodes which define the elevation at the start of the pipe and the end of the pipe.

• A single pipe can be set to any length between 0.1m and 10000m for example.

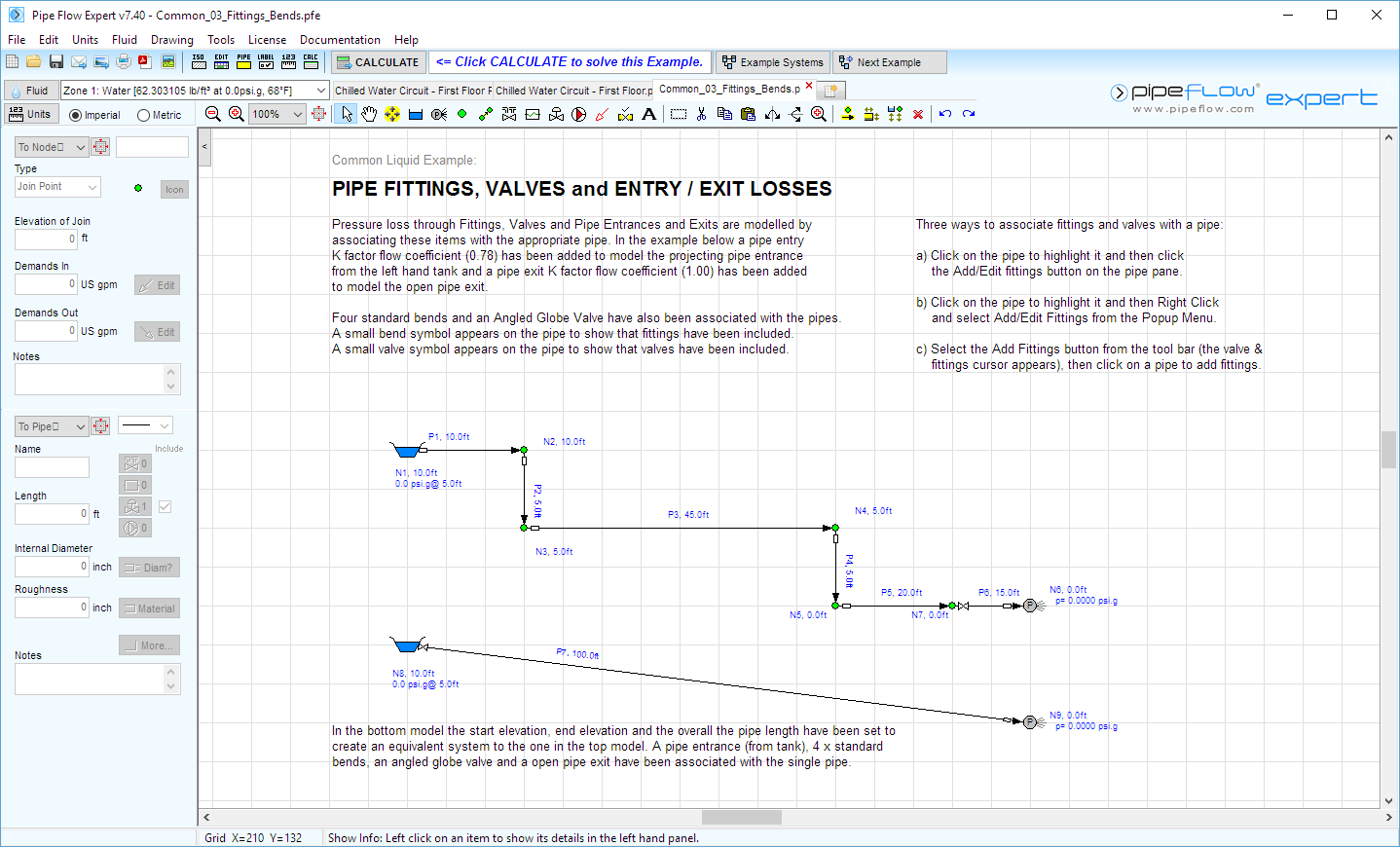

• Multiple fittings can be added to a single pipe
  (up to 5 different types of fitting with a quantity of each)
• e.g. 5 standard bend fittings can be included on a single pipe.

The only reason a new pipe is needed is if the pipe material or pipe diameter changes, or your pipe splits in to multiple branches. In these cases a new pipe will be required.

If you want to draw out each bend to produce a drawing that looks like your physical layout (perhaps with just a single bend fitting on each pipe) then you may also choose to use new pipes to achieve this.



We allow people to upgrade the software from the Pipe Flow Expert Lite version to the Full version for the difference in cost, if the upgrade request occurs within 12 months of the original purchase.

The Full version of Pipe Flow Expert software and Lite version of Pipe Flow Expert software operate in exactly the same manner and have exactly the same functionality with the only difference being that the Lite version limits the size of any one pipe model to 25 pipes.
