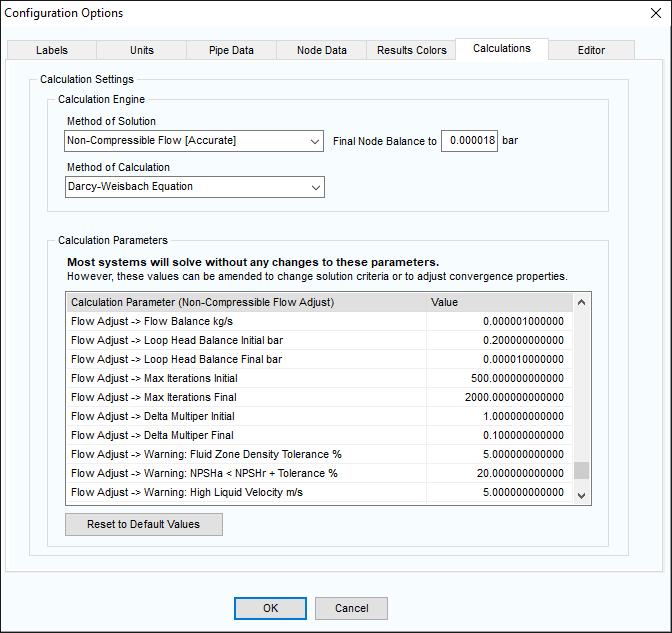

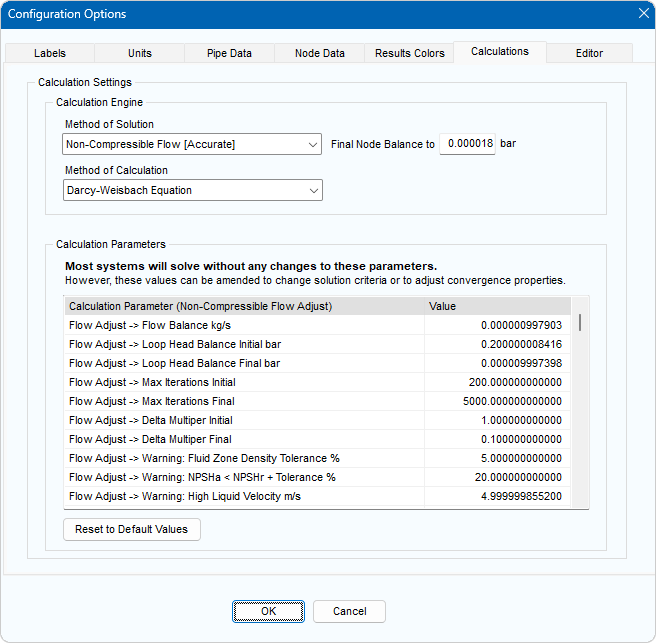

Figure 30  Configuration Options - Calculations Tab

Feature

Description

Method of Solution

Non-Compressible or Compressible flow calculation engine

Method of Calculation

Equation used to calculate friction loss.

Final Node Balance

Balance pressure at all nodes to this accuracy

Calculation Parameters

A set of values that are used during convergence to determine a solution. The actual parameters vary depending on the Method of Solution selected and the Method of Calculation equation that is selected.

Reset All entries to the Default Values

Restore the standard settings for the calculation parameters.

OK

Confirm changes to system calculation options.

Cancel

Close the Calculations Tab without making any changes.



Note: We recommend that you do not change these values, unless it becomes necessary to solve a very finely balanced system.
