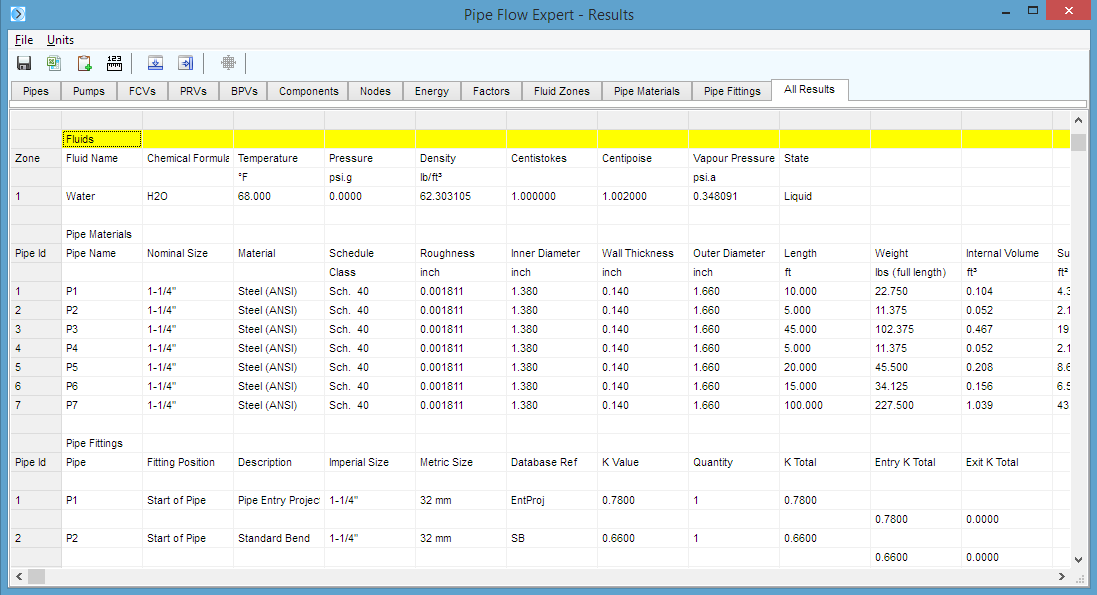

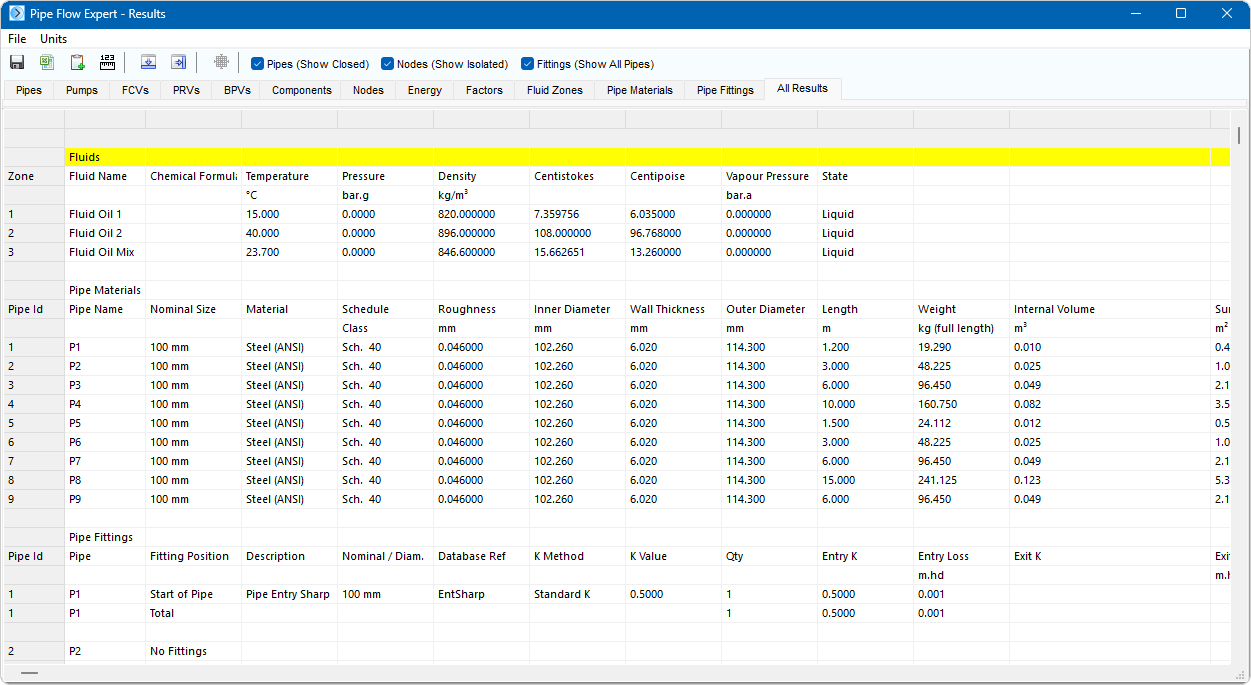

The values displayed in the Results Tables can be exported directly into Microsoft Excel. When you are exporting to Microsoft Excel from the Results Tables, only the values displayed on the currently selected tab are exported. To export all the result values, click the All Results tab before exporting.


To export a pipe system’s results into a .xlsx file:


  1. After a pipe system has been calculated and solved, click the View Results Sheet button on the Results Log dialog to open the Results Tables or close the results log and click the Results Sheet button on the tool bar.


  1. Click the tab containing the values you want to export.


  1. Click the Export to Excel button, ExportToExcelButton.dib, or select File | Export to Excel.


  1. Clicking the Export to Excel button or menu selection opens the pipe system results from the selected tab in a worksheet in Microsoft Excel.


If Microsoft Excel is not available the results can be copied to the Windows clipboard, so that the data can be pasted into other spreadsheet applications.

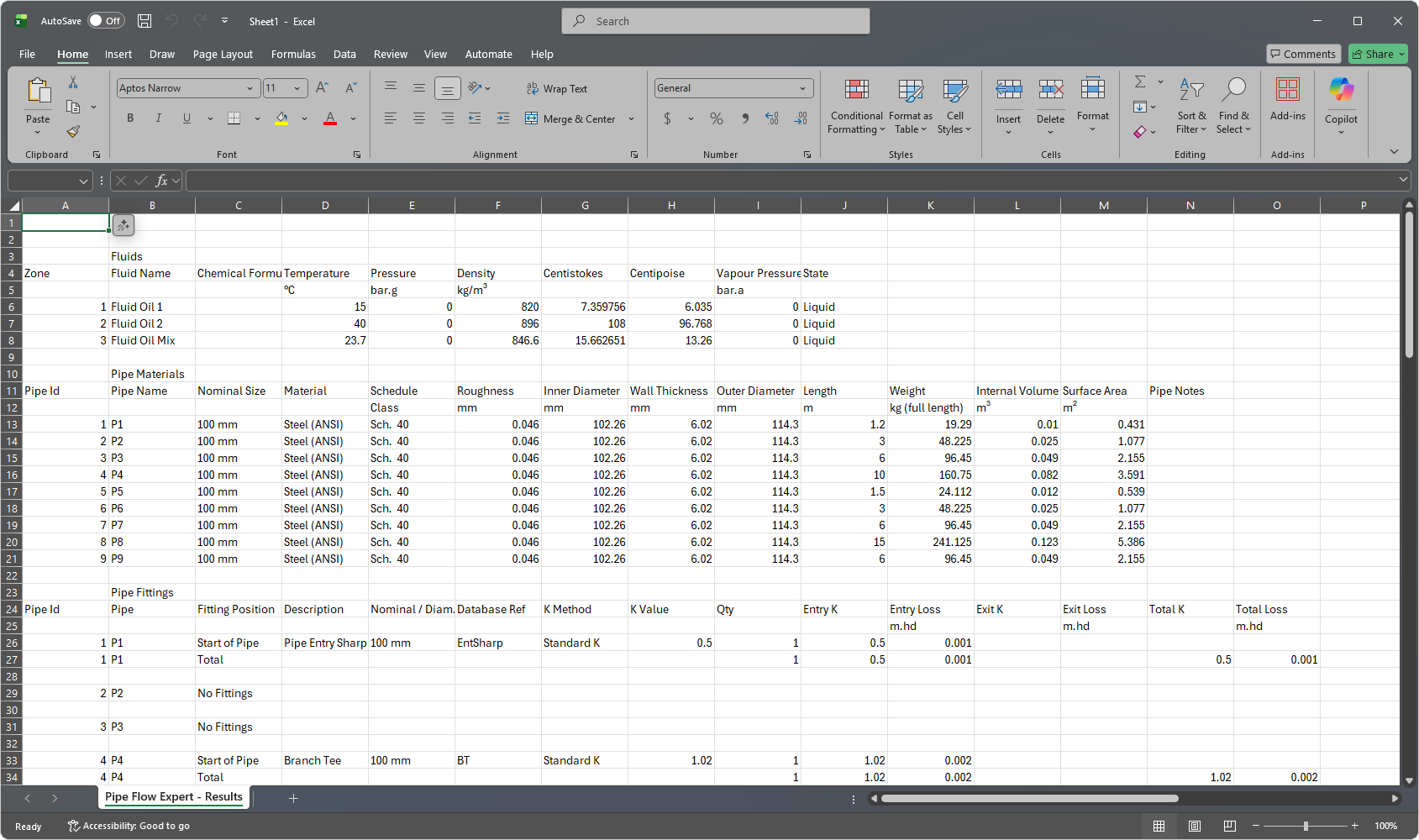

Figure 121  pipe system results in Microsoft Excel
