Reference:  Flow of Fluids – Technical Paper No 410, 1988, Crane Co. Page 3-12, Example 2.


Pipe Flow Expert File: Case_28_Lubricating_Oil_Laminar_Flow_Example_2.pfe


Problem Description:

A 3” diameter schedule 40 carries SAE 10 lube oil at a velocity of 5.0 ft/s


Find the flow rate and the pressure drop per 100 feet.

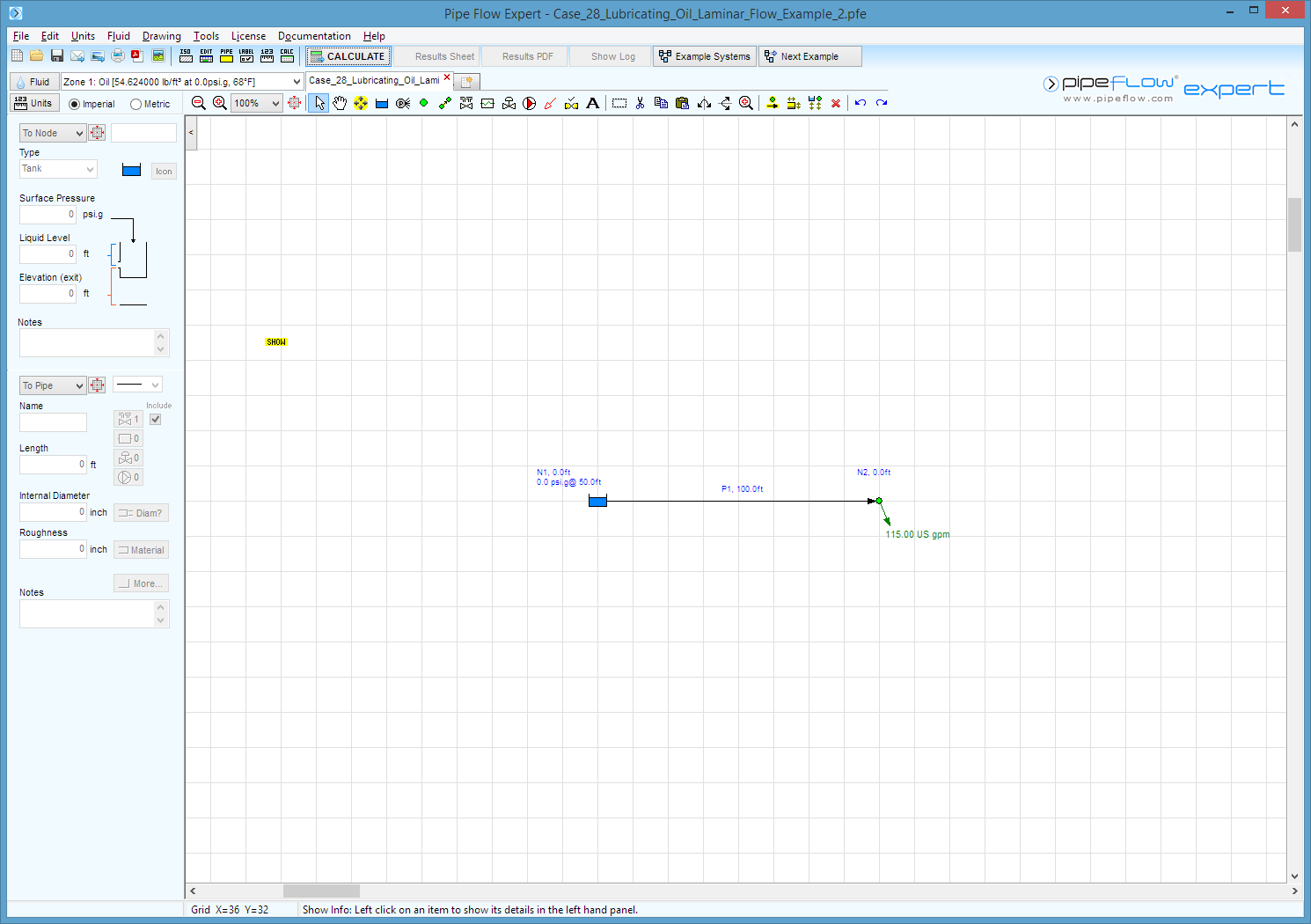

A screenshot of a computer??Description automatically generated


Fluid Data: Oil, viscosity = 95 Centipoise, density = 54.64 lb/ft3


Result Comparison:


Data Item

Published data

Pipe Flow Expert

Flow rate (gpm )

115

115

Fluid velocity (ft/s)

5.00

4.991

Reynolds number

1100

1092

Pressure drop per 100 feet(psi)

3.40

3.3665


Commentary:

The published data and the calculated results compare well.
