To add fittings to a pipe:


  1. Click the Fittings button on the calculation panel to open the Fittings screen.

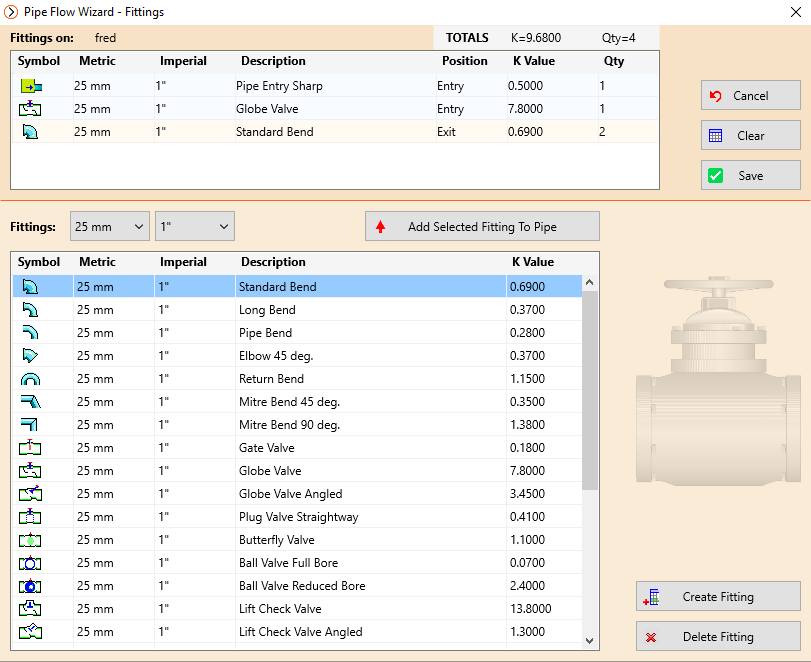

A screenshot of a computer??Description automatically generated

Figure 50 Fittings & Valves


  1. The fittings on the pipe will be shown in the Fittings on section at the top of the screen.
  2. A list of available fittings will be shown for the current pipe size.
  3. If required, change the nominal metric or imperial size from the drop-down list to display the available fittings and their associated K value for a different size.
  4. If the fitting is not in the Fitting Database list, click the Create Fitting button to add the new fitting to the list.  For more information about adding a fitting to the database, see Adding a Fitting to the Pipe
  5. Double click on a fitting from the list to add it to the fittings on the pipe.
  6. The selected fitting is displayed in the Fittings on section of the Fittings screen.
  7. Select the position of the fitting on the pipe to be either Entry or Exit, and select the quantity of each fitting from the Qty drop down list.
  8. To add additional fittings to the pipe, repeat Steps 4 – 8.
  9. Click Save to add the chosen fittings to the pipe, and to close the Fittings screen.
