Pipe Flow Wizard Software for Desktop User Guide - Removing a Fitting from the Pipe

To remove fittings from a pipe:

1. Click the Fittings button on the calculation panel to open the Fittings screen.

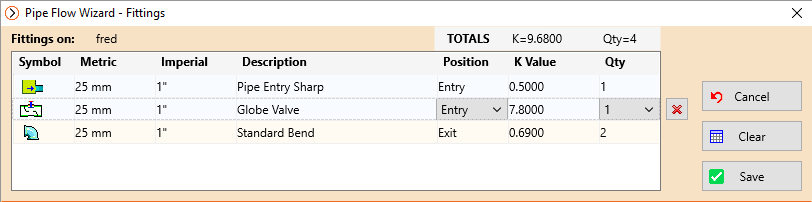

Figure 51 Fittings on the Pipe

2. Select the fitting to be removed in the Fittings on section of the Fittings screen.

3. Click the Delete button for the selected fitting.

4. Click Save to update the pipe with the chosen fittings, and to close the Fittings screen.
