When a calculation is solved, the Results Panel slides up and over the Calculation Panel.

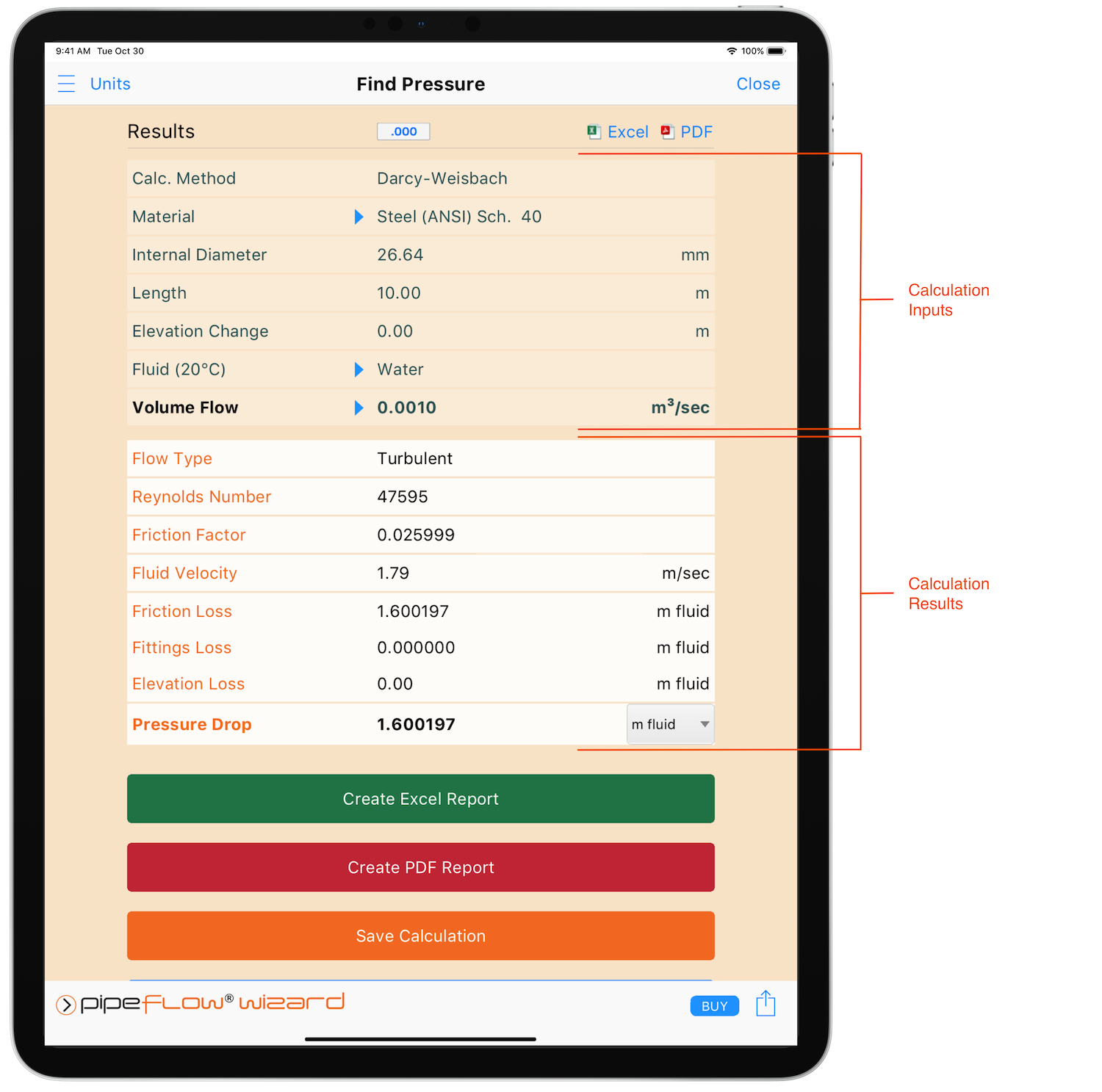

Figure 9 Results Panel


The results panel displays the data that was entered by the user at the top in the Inputs section and displays the results beneath the inputs in the Results section.


The display unit for each different item of data can be changed in Settings.  In addition, for the main result (e.g. Pressure Drop for Find Pressure), the display unit can be changed by selecting the unit from the drop-down list.  When the result panel is closed, and another calculation is performed, the result unit will be reset to the unit that is specified in settings for that attribute.  For more information about setting units, see: Units.


Tapping the expander button for a result attribute will reveal further data associated with that attribute.  For further information about expanders, see: Expandable Sections
