Pipe Flow Expert Software Example Systems - General Gas 09 – North Sea Natural Gas Collection

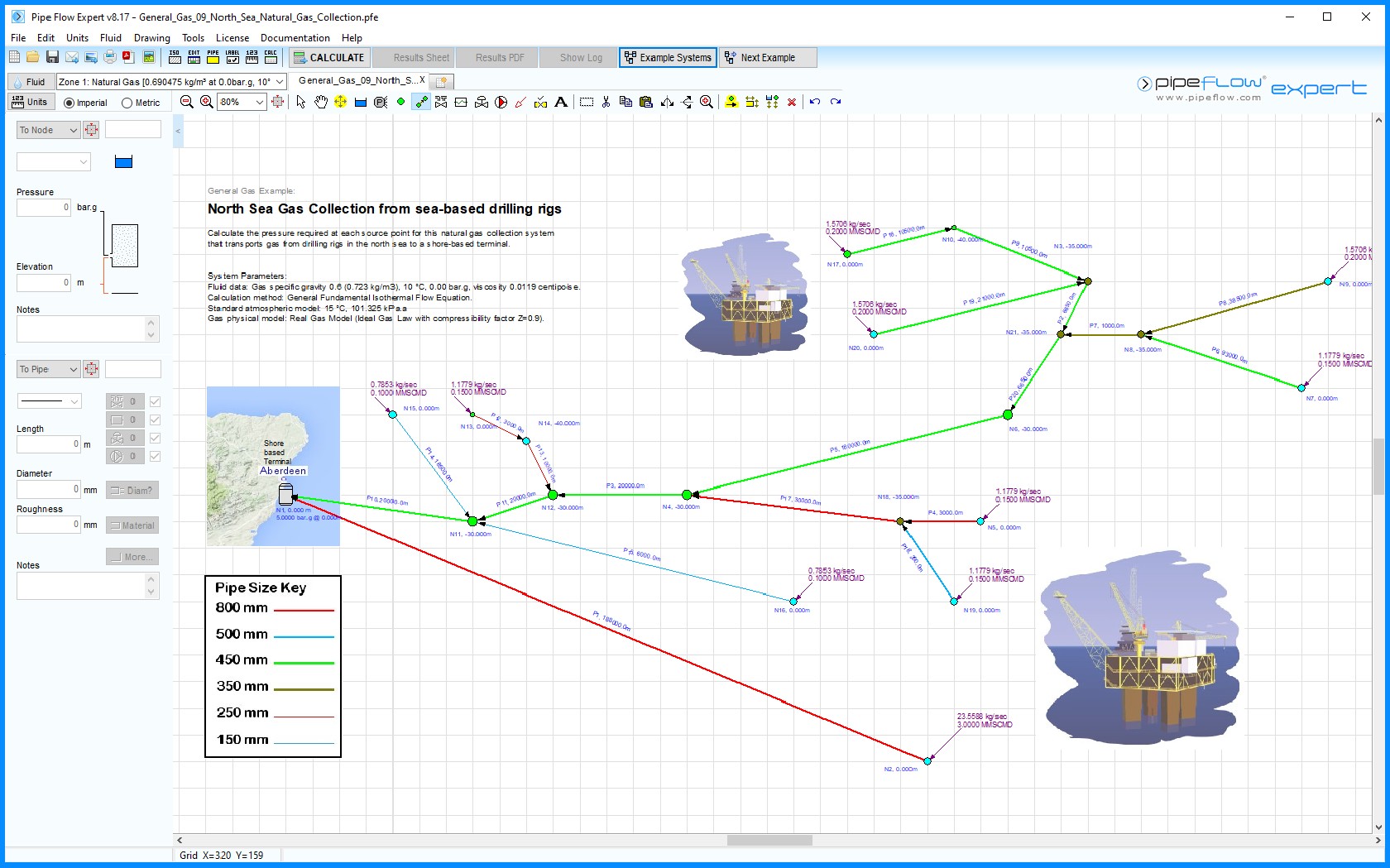

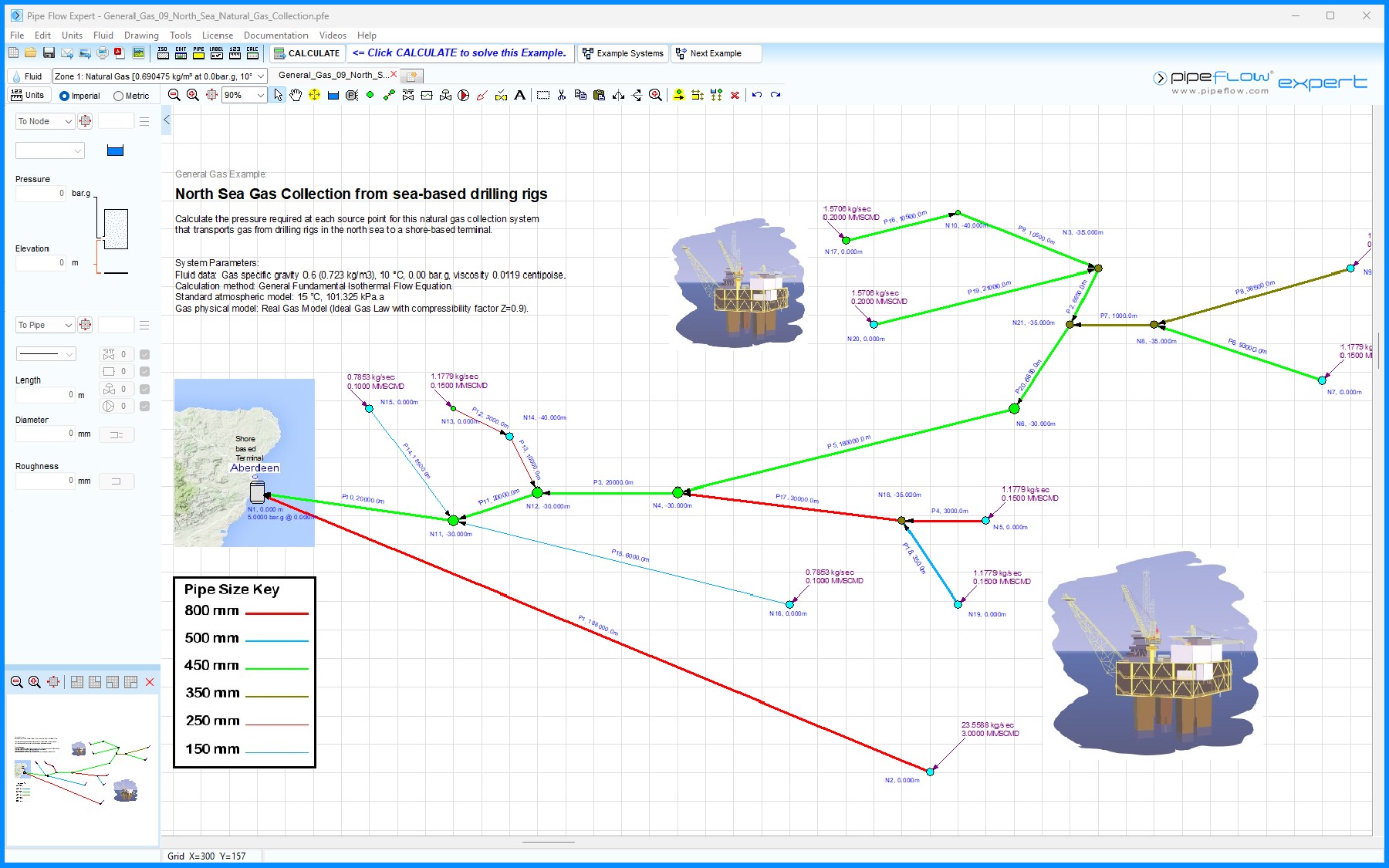

Figure 63  General Gas 09 – North Sea Natural Gas Collection

This model shows a North Sea Gas Collection system that contains long lengths of large diameter pipes.

Calculate the pressure required at each source point in this collection system that transports natural gas from drilling rigs in the North Sea to a shore-based terminal.
