Pipe Flow Expert Software User Guide - Adding a Bevel-Edged Orifice

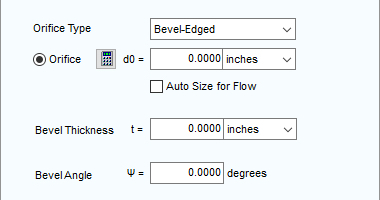

To define a Bevel Edged orifice:

1. Select the Bevel-Edged Orifice Type.

2. Enter the Orifice Diameter (d0) as required.

3. Enter the Bevel Thickness (t) as required.

Enter the Bevel Angle () as required.

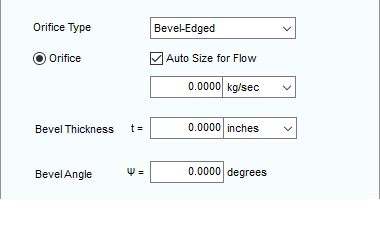

To define a Bevel-Edged orifice with a diameter (d0) for a specific flow rate:

1. Select the Bevel-Edged Orifice Type.

2. Select the Auto Size for Flow checkbox and enter the flow rate as required.

3. Enter the Bevel Thickness (t) as required.

4. Enter the Bevel Angle () as required.
