Pipe Flow Expert Software User Guide - Adding a Thick-Edged Orifice

To define a Thick-Edged orifice:

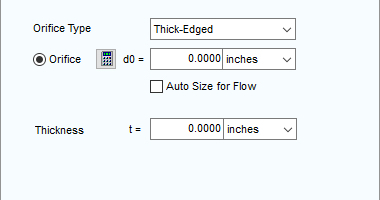

1. Select the Thick-Edged Orifice Type.

2. Enter the Orifice Diameter (d0) as required.

3. Enter the Thickness (t) as required.

To define a Thick-Edged orifice with a diameter (d0) for a specific flow rate:

1. Select the Thick-Edged Orifice Type.

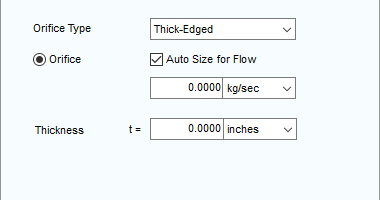

2. Select the Auto Size for Flow checkbox and enter the flow rate as required,

3. Enter the Thickness (t) as required.
